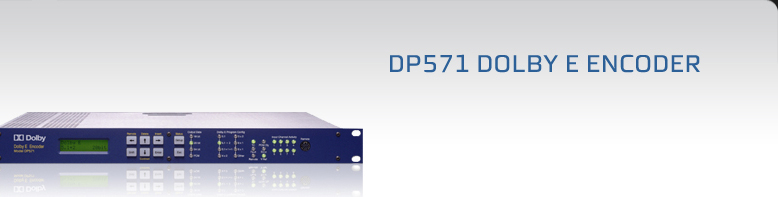

Dolby DP571 Dolby E encoder
£12.00
The Dolby DP571 encodes multichannel audio into the Dolby E format for contribution and distribution through the conventional two-channel infrastructures of DTV and HDTV facilities.
Price Guide
Daily Hire: £75
Weekly Hire: £300
Description
The DP571 encodes up to eight audio channels plus metadata into a single two-channel AES bitstream (20 bits at 48 kHz). An alternate mode of operation allows for encoding of six audio channels plus metadata (16 bits at 48 kHz).
Dolby E Configurations
The audio channels within a Dolby E stream can be grouped together to carry separate audio programs. For example, with multichannel programming, a “5.1 + 2” configuration is typically used, with six of the eight channels carrying a 5.1 channel program and the other two an Lt/Rt (matrix surround-encoded) or stereo program. Alternate configurations include a 5.1 program plus two mono tracks (5.1 + 1 + 1), four stereo programs (4 × 2), and eight mono channels (8 × 1). Front-panel LEDs confirm the configuration chosen.
The DP571 accepts SMPTE timecode, standard video black reference signals, and tri-level sync (via the Dolby DP579 Dolby E Tri-Level Sync Interface).
For decoding material in the Dolby E format, the DP572 Dolby E Decoder is the ideal companion unit.
Price Guide
Daily Hire: £75
Weekly Hire: £300
